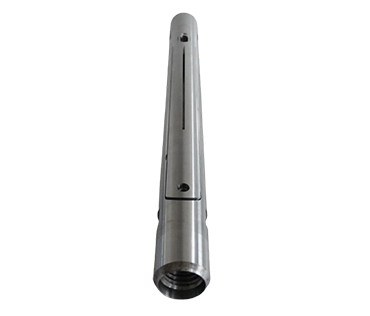

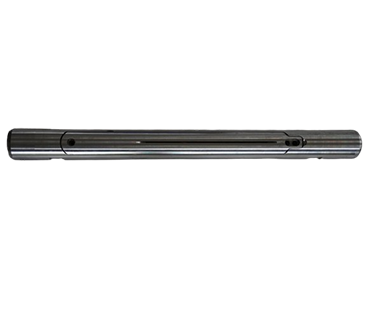

Housing sondes are vital components in Horizontal Directional Drilling (HDD) that provide precise location and tracking of the drill head during underground drilling operations. These compact, durable devices emit electromagnetic signals detectable by surface locating equipment, enabling operators to monitor the drill’s position, depth, and orientation in real time. Accurate tracking is essential to ensure the drill path stays within design parameters, avoids underground utilities, and achieves a successful bore.
HDD housing sondes are typically installed inside the drill head or reamer housing, protected by a robust outer casing that withstands the harsh drilling environment, including high pressure, abrasion, and moisture exposure.
We provide housing sondes equipped with a Box-to-Box connection, offering greater flexibility in tooling selection tailored to varying soil conditions. Constructed from heat-treated alloy steel, these housings feature an outer body enhanced with laser cladding to deliver superior wear resistance.
Inside the housing, the sonde is securely positioned within a nylon tube using specialized adaptors. This configuration provides additional cushioning and protection,significantly extending the sonde’s operational life in demanding drilling environments.
Durability: Constructed from high-strength, corrosion-resistant materials to withstand abrasive soils, moisture, and mechanical impacts.
Signal Reliability: Engineered to emit clear, consistent electromagnetic signals for precise surface tracking.
Versatility: Available in multiple sizes and configurations to fit various HDD tools and project requirements.
Ease of Installation: Designed for quick and secure mounting within drill heads or reamer housings, facilitating rapid setup and replacement.
Enhanced Safety: Accurate tracking helps avoid underground utilities and reduces the risk of costly drilling errors or damages.
| PART NUMBER | TYPES | |||
|---|---|---|---|---|
| Transmitter size: 15 inch | ||||
| SONDE250SB | 2-1/2inch DIA 6 Bolt (1/2”) | |||
| SONDE300SS | 3inch DIA 6 Bolt (1/2”) x 2.125” Spline | |||
| SONDE300SB | 3inch DIA 6 Bolt (1/2”) x 2” IF BOX Connection | |||
| SONDE300BB | 3inch DIA 2” IF BOX x 2” IF BOX Connection | |||
| Transmitter size: 15 inch / 19 inch | ||||
| SONDE335BB | 3.35inch DIA 2-3/8” IF BOX x 2-3/8” IF BOX Connection | |||
| SONDE375BB | 3.75inch DIA 2-7/8” IF BOX x 2-7/8” IF BOX Connection | |||
